Rotary Laser Steel Rule

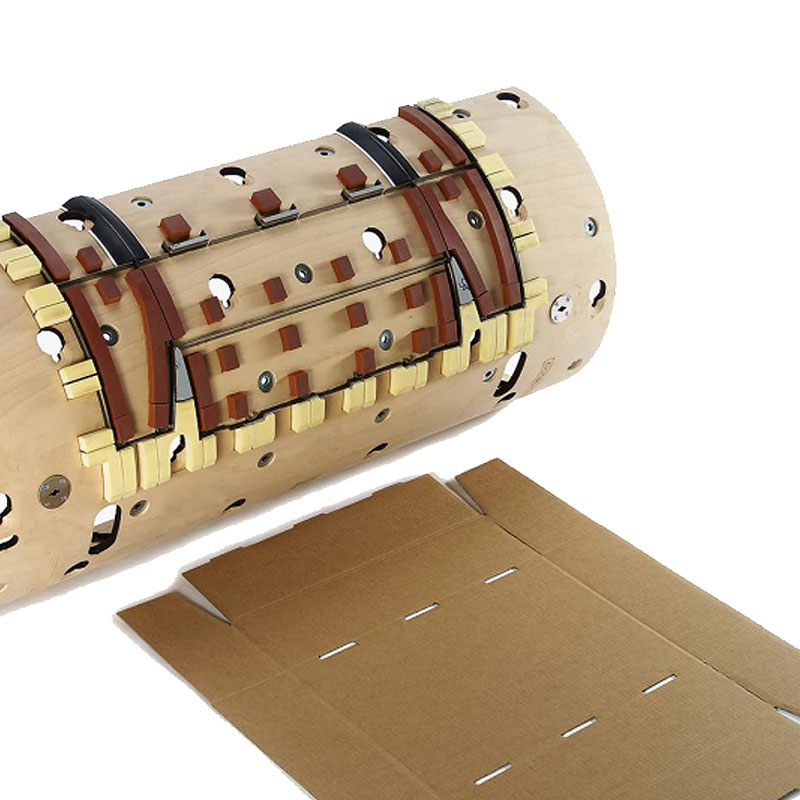

It can be used for die-making, and used to cut cardboard, corrugated board, labels, post card, business cards, and jigsaw puzzle. With different thickness and bevel shape.

Inquire Now Next Product

Application

It can be used for die-making, and used to cut cardboard, corrugated board, labels, post card, business cards, and jigsaw puzzle. With different thickness and bevel shape.

Technical Specifications

name	Thickness	Height/length (mm/mm)	Package (pcs/m/box)	Body hardness	Edge angle
Cutting rule	0.45	23~23.80/1000	150	38HRC-54HRC	42°\52°
	0.53	23~23.80/1000	125
	0.71	23~23.80/1000	100
	1.05	23~23.80/1000	70
	1.42	23~23.80/1000	50
Creasing rule	0.53	22.00~23.80/1000	125	38HRC-54HRC
	0.71	22.00~23.80/1000	100
	1.05	22.00~23.80/1000	70
	1.42	22.00~23.80/1000	50
Wave rule	0.71	23~23.80/1000	100	38HRC-54HRC
Perforating rule	0.71	23~23.80/1000	100	38HRC-54HRC	42°\52°
Perforating rule	1.05	23~23.80/1000	70	38HRC-54HRC	42°\52°
