new arrival cnc pertinax plywood milling machine for die making

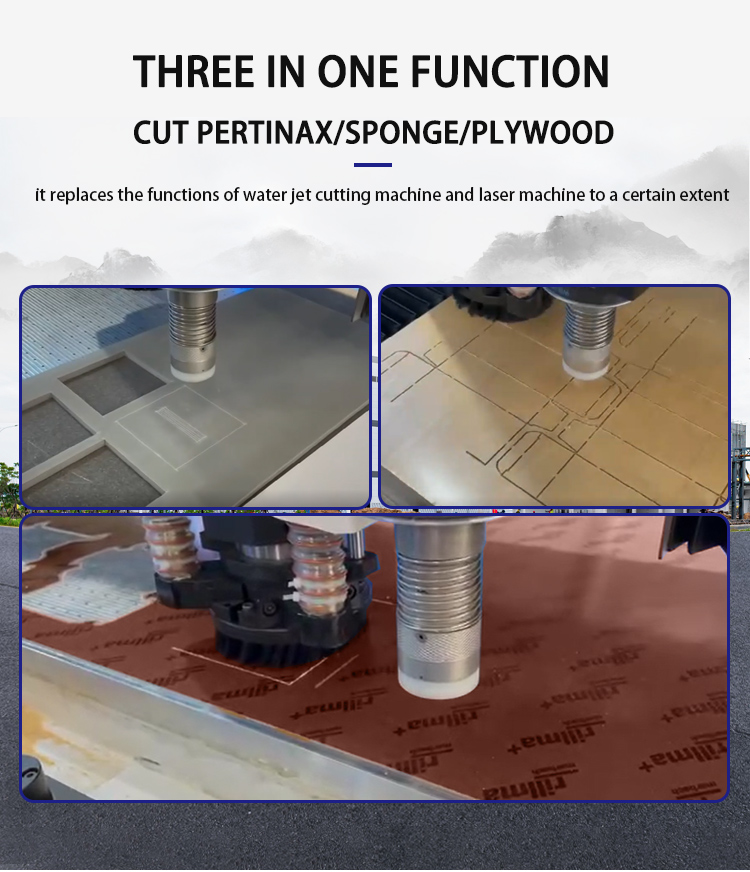

PERTINAX Milling machine is mainly for cutting the PERTINAX in Sandwich die industry, and can also be used to cut sponges and wood boards. In addition to having the functions of a conventional pertinax milling machine, it also replaces the functions of water jet cutting machine and laser machine to a certain extent. Besides, the machine can also mill the edges of stripping die.



Stable body structure design, professional CNC control system, cutting efficiency and quality have more advantages than traditional cutting methods.

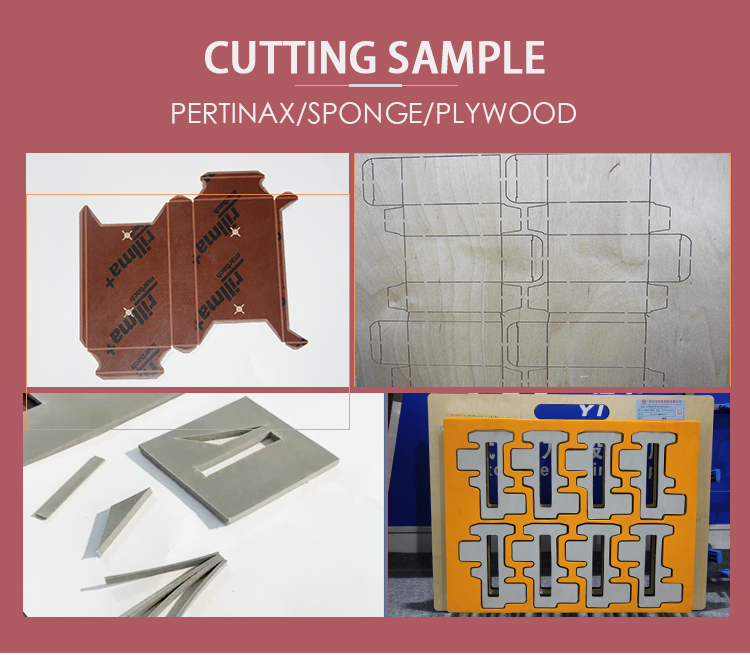

Application

new arrival cnc pertinax plywood milling machine for die making

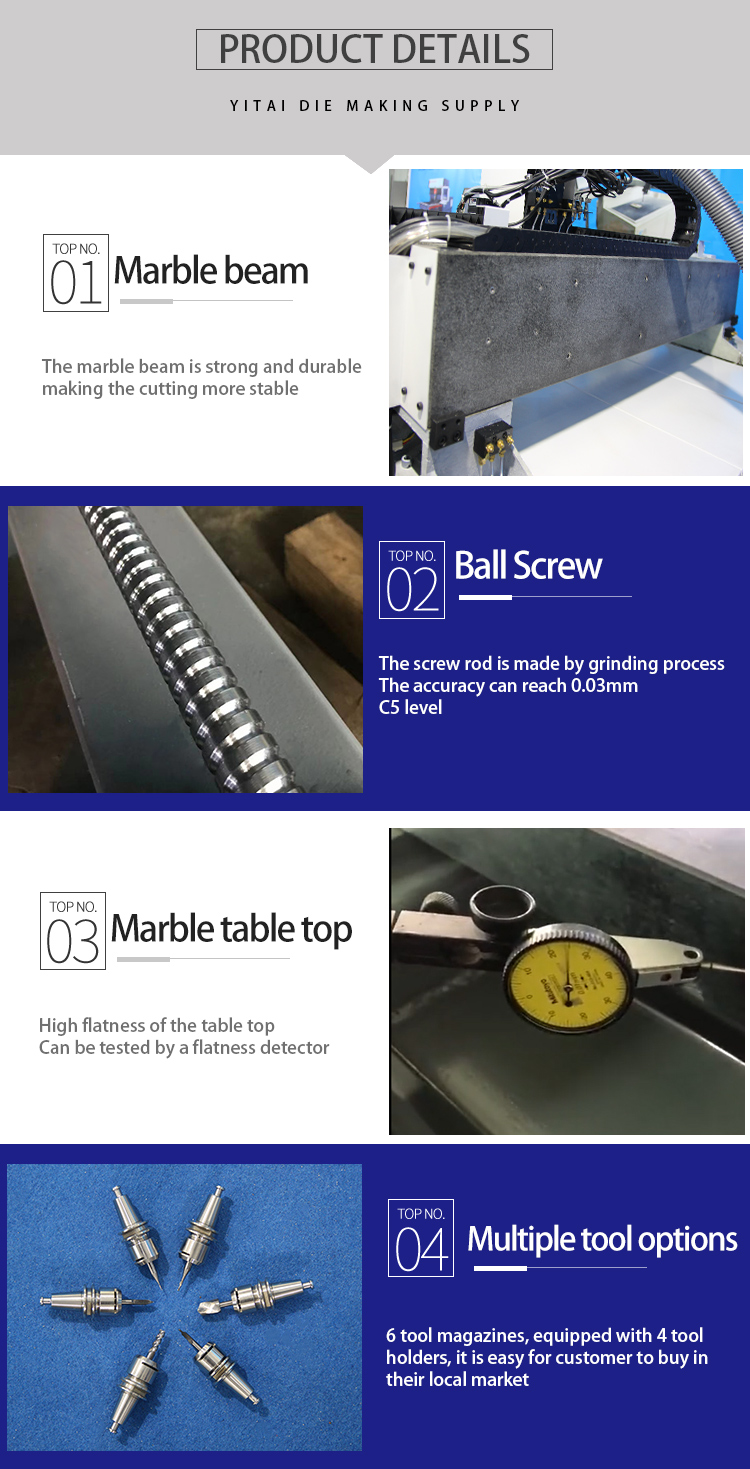

Unique Features

new arrival cnc pertinax plywood milling machine for die makingnew arrival cnc pertinax plywood milling machine for die making

Technical Specifications

Model No.

YT110

X-axis travel-length

1100mm

Y-axis travel-length

1080mm

Z-axis travel-length

90mm

No-load speed

10m/min

Rotational speed

60000RPM

Cutting Precision

0.02mm

Re-Positioning Precision

0.01mm

Cutting thickness

Flat plywood 18mm, PVC 6mm, Sponge 7mm

Runout Tolerance

0.003mm

Power

380V/6KW (three-phase supply)

Overall dimensions (L*W*H)

1600*1800*1400mm

G. Weight

900kg
